High Speed Energy Saving Fully Automatic Rock Wool Sandwich Panel Making Machine for Building Applications

High Speed Energy Saving Fully Automatic Rock Wool Sandwich Panel Making Machine for Building Applications

Nombre De La Marca:	Greenson
Cuota De Producción:	1
Precio:	$790000
Condiciones De Pago:	LC, T/T

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

hebei

Nombre del producto:

Máquina para fabricar paneles sándwich de lana de roca con ahorro de energía y alta velocidad a la v

Palabra clave:

Línea de producción de paneles de lana de roca ignífugos.

Solicitud:

Edificio

Color:

Requisito del cliente

OEM:

Sí

Característica:

Completamente automático

Detalles de empaquetado:

Película plástica

Puerto de despacho:

TianJin

componentes centrales:

PLC, motor, transporte, motor, bomba

puntos clave de venta:

Fácil de operar

Descripción del producto

High Speed Energy Saving Rock Wool Sandwich Panel Making Machine For Sale

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types

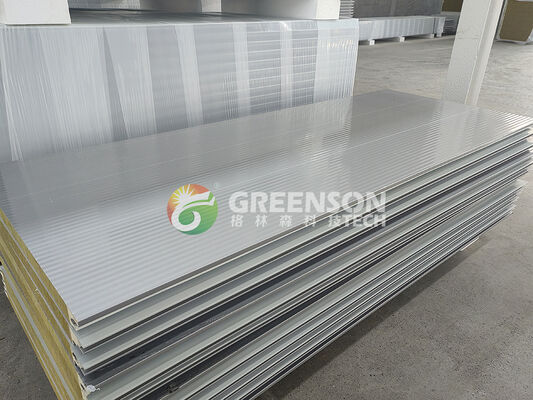

Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material	Type: Color steel sheet; Galvanized sheet; Aluminum sheet Thickness: 0.3-0.8 mm Width: ≤1250 Mpa
Suitable Panel Size	Length: 2000-18000 mm Width: 500-1200 mm Thickness: 30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 * 15000 * 6000 mm (Length * Width * Height)
