cadena de producción de la teja del techo del yeso

Full Automatic Gypsum Ceiling Tile Production Line with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Full Automatic Gypsum Ceiling Tile Production Line with 1300mm Effective Laminating and 2-6 Million Sq.m/year Capacity

Nombre De La Marca:	LVJOE
Número De Modelo:	1300 fm
Cuota De Producción:	1 línea
Precio:	US $20000-200000
Condiciones De Pago:	L/C, T/T
Capacidad De Suministro:	10 líneas por año

Información detallada

Descripción del producto

Información detallada

Lugar de origen:

Hebei, China (continente)

Certificación:

ISO CE

Nombre del producto:

Máquina laminadora de doble cara avanzada completamente automática, máquina para fabricar tejas de t

Palabra clave:

máquina para hacer tejas de yeso

Tipo de tablero terminado:

Tablero de yeso laminado de PVC

Laminación efectiva:

1300 mm

Control eléctrico:

Sistema PLC

Capacidad de producción:

2-6 millones de m2/año

Servicio postventa:

Ingenieros disponibles para el servicio

Tipo de pegamento:

Glue de agua para la película de PVC

Detalles de empaquetado:

Embalaje estándar

Capacidad de la fuente:

10 líneas por año

Resaltar:

1300mm Effective Laminating Gypsum Ceiling Tile Production Line

2-6 million Sq.m/year Production Capacity Gypsum Board Laminating Machine

Adjustable Speed 2-15m/min PVC Laminated Gypsum Board Machine

Descripción del producto

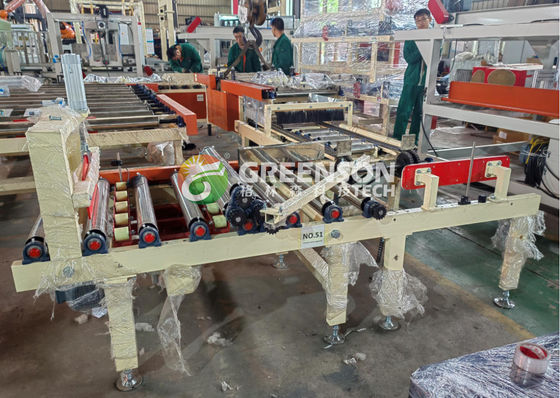

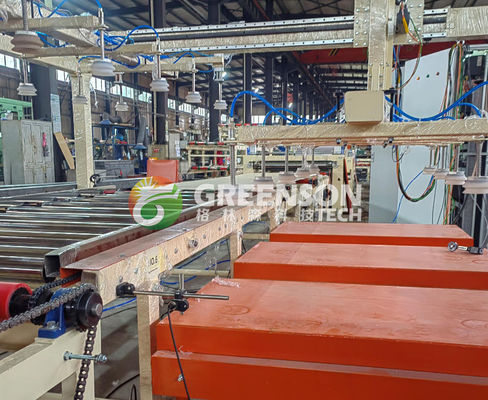

Full Automatic Advanced Double Side Laminating Machine for Gypsum Board Ceiling Tiles

Product Overview

This advanced double side laminating machine is designed for producing PVC laminated gypsum boards used as ceiling tiles and partition wall panels. The fully automatic system handles fiber glass, paper, PVC film, and aluminum foil lamination with precision and efficiency.

Key Specifications

Attribute	Value
Finished board type	PVC laminated gypsum board
Effective laminating width	1300mm
Electric control	PLC system
Production Capacity	2-6 million Sq.m/year
Speed	2-15m/min (adjustable)
After-sales Service	Engineers available to service
Warranty	1 year
Glue type	Water Glue for PVC film

Main Components

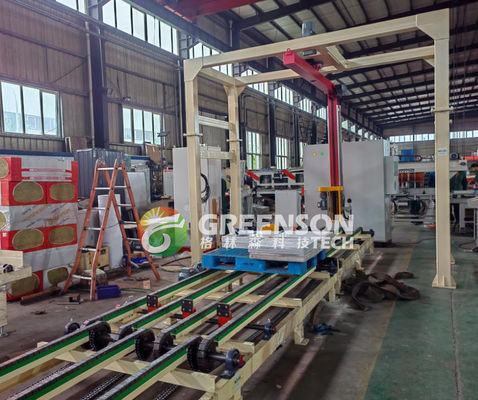

Automatic Gypsum Board Feeding Machine

The cylinder pushes gypsum boards from the stack lift platform to the conveyor roll for PVC and aluminum film lamination.

Max. Load-bearing: 3000kg

Stroke: 1500mm

Height range: 620mm - 2000mm

Platform size: 1200×2400mm

Automatic Cutting Machine

Features two cutting systems (vertical/longitudinal and horizontal) with dust collection, converting 1.2×2.4m boards into 603×603mm or 595×595mm tiles.

Cutting speed: 15m/min

Cutting knives: Vertical: 3 blades, Horizontal: 5 blades

Overall power: 17.15KW

Technical Specifications

Sheet thickness range: 5-30mm
Speed adjustment: Frequency conversion synchronous speed regulating
Annual capacity: 2-4 million Sq.m
Compatible film materials: PVC film, aluminum foils, decorative materials
Board materials: PVC baseboard, gypsum board, wood board, sectional board, PVC foam board
Stacking mode: 10 layers (4 packages/layer)
Lamination options: Double side (front and back simultaneously) or single side
Overall dimensions: 56000mm (L) × 9200mm (W)
